Client| Port Authority of Savona
Contractor|IMPREURO S.p.A.
Site| Savona Port, Italy
Services| Preliminary, definitive and executive design of the structures, coordination of safety in the planning phase; position assigned following a public tender in May 2001 and performed in a temporary grouping with Eng. Marco Censasorte and the BEA International of Miami – architectural designers and COSTEN S.r.l. – designer of mechanical systems and electrical systems. Direction of the works of the entire intervention, accounting, coordination of security in the execution phase.
Preliminary design of the architecture and master-plan of the port area | Arch: Ricardo Bofill Levi di Barcellona
Description

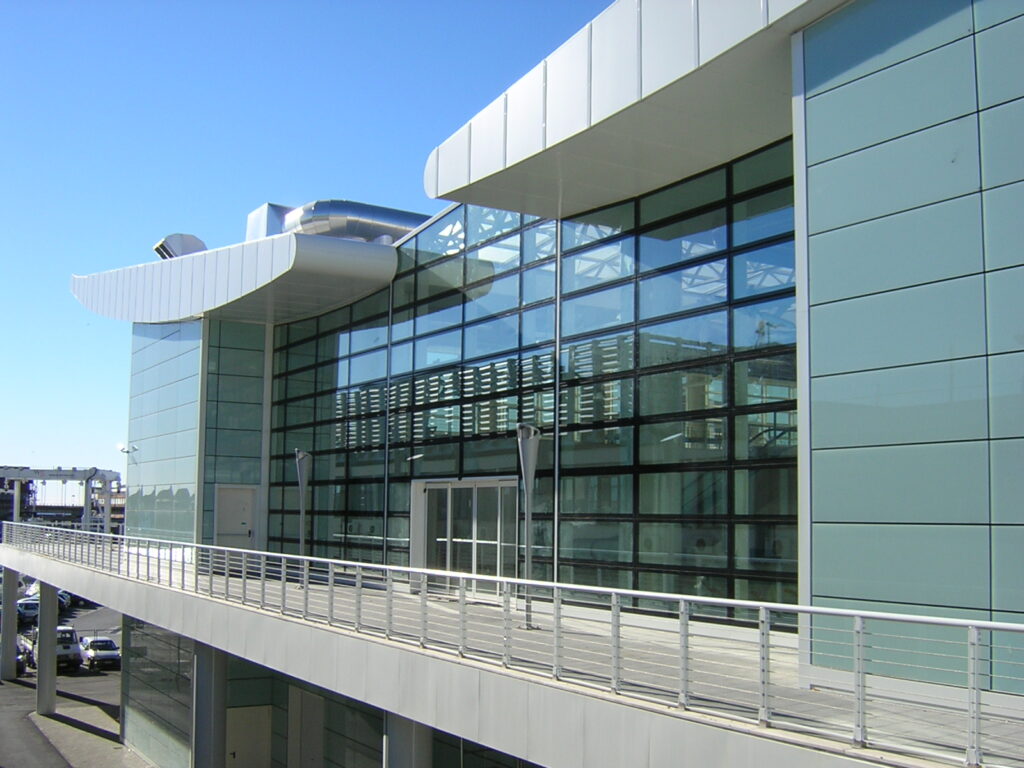

The maritime station was built with a regular rectangular steel bearing structure whose dimensions are approximately the following:
84 m x 60 m on the axis of the pillars, on the first deck;
69 m x 44 m on the axis of the pillars, on the second deck;
76 m x 50 m, including overhangs, on the roof.

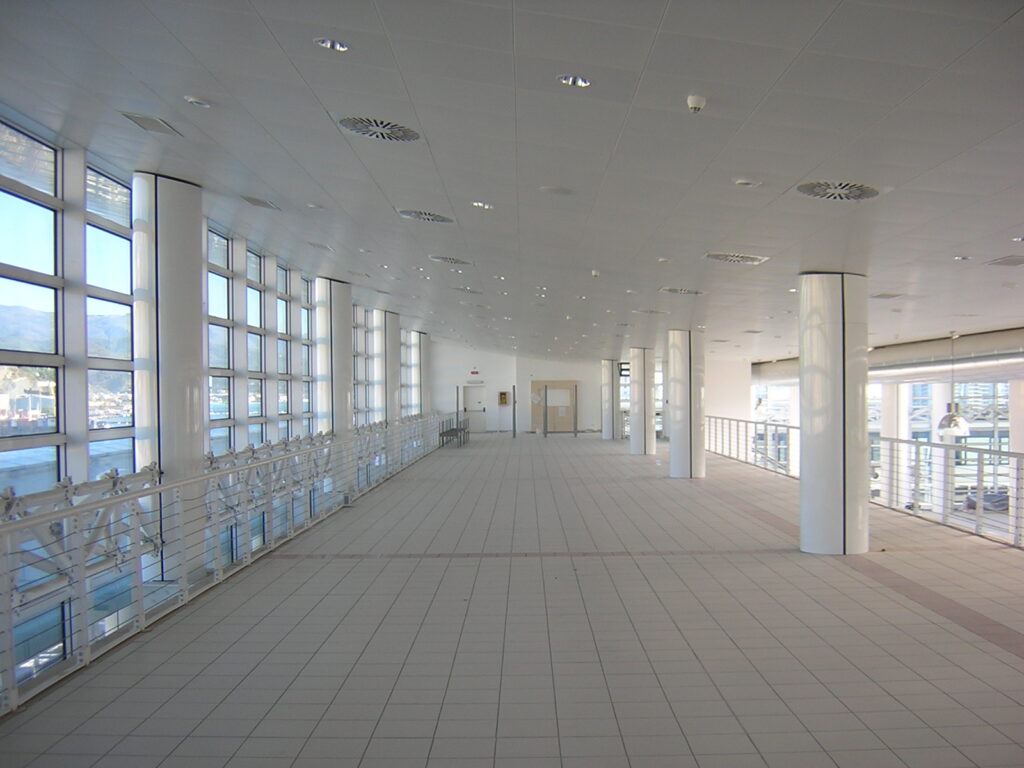

It is laid out on a ground floor, resting on a crawl space, a first level, a mezzanine level divided into two separate parts between them and a large two-pitched roof with a central skylight. A covered walkway continues beyond the main body of the maritime station and is structurally independent from this.
All the floors are made of galvanized corrugated sheet type hi-bond with overhanging casting resting on a secondary framework of commercial steel sections with a maximum light of 10.55 m.
Amount of facilities
€ 4,360,150.00
Full amount of the work
€ 10.740.790,00
Chronology
Design: September 2001 / April 2002
End of work: 2003.
